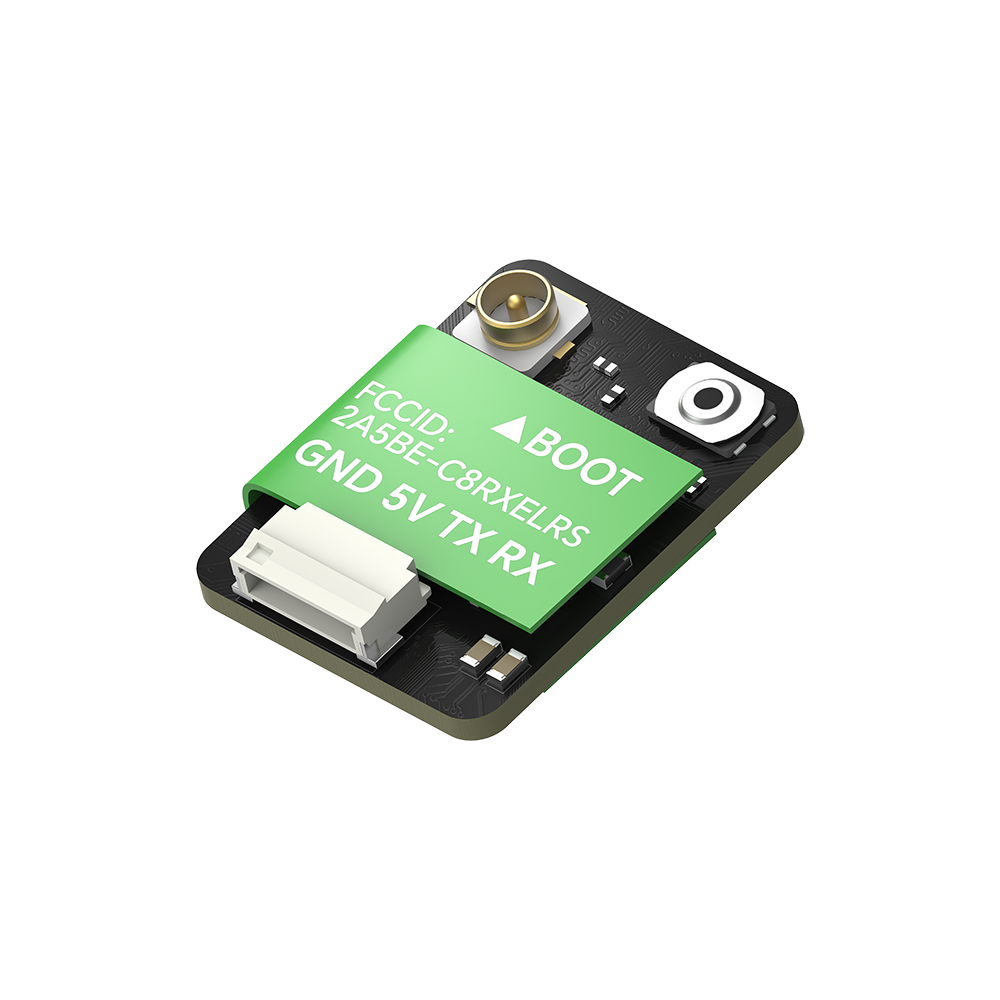

iFlight ExpressLRS ELRS Nano Receiver - 2.4G with 70mm Mini Antenna

The iFlight ExpressLRS ELRS Nano Receiver is a compact receiver for FPV builds that need low latency, strong link performance, and a small footprint. This variant includes the ELRS 2.4G receiver with a 70mm mini antenna.

Key Features

• ExpressLRS receiver module for compatible radio systems
• Temperature-compensated crystal oscillator for improved frequency stability
• Compact 10 x 13mm board size
• CRSF protocol support
• 5V input

Specifications

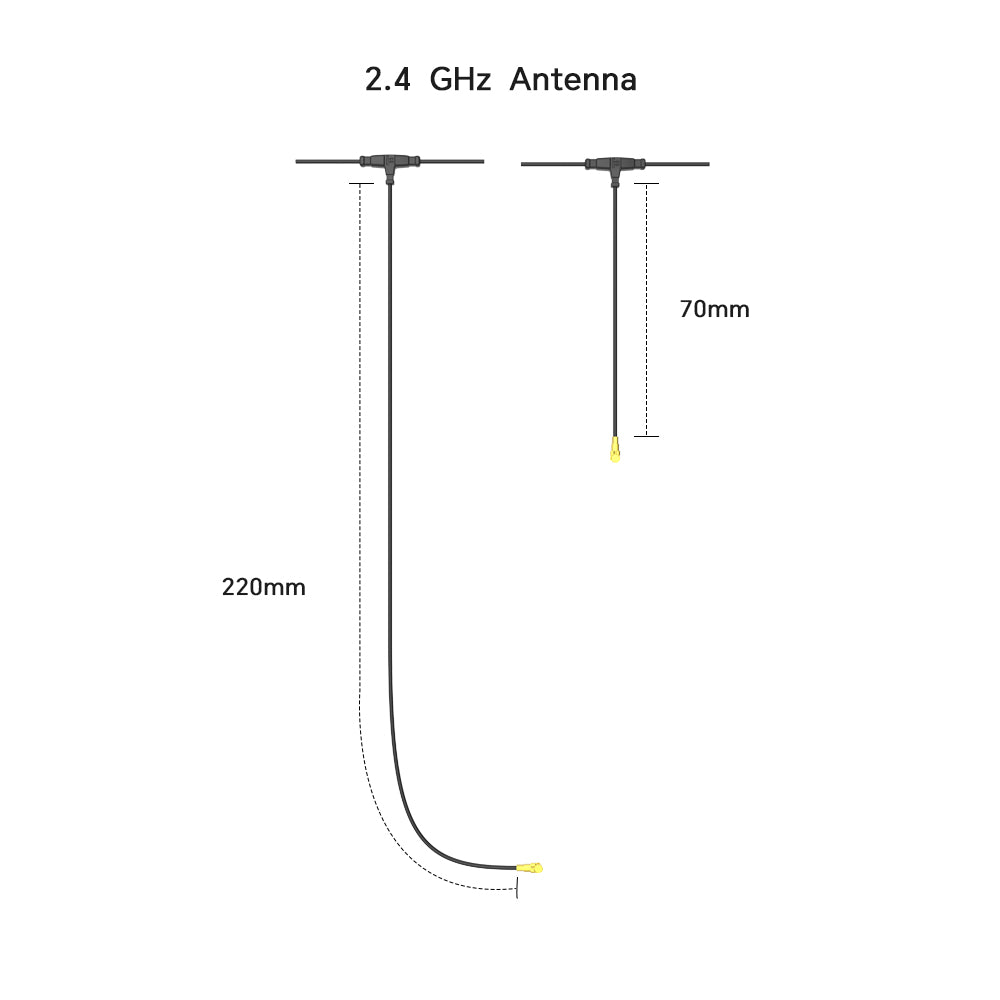

• Band option: ELRS 2.4G RX + 70mm mini antenna
• Frequency band: 2.4GHz ISM
• Telemetry power: 12.3dBm / 17mW for 2.4G
• Connector: SUR0.8
• Interface: RX, TX, 5V, GND
• Weight: 0.5g

Includes

• 1 x ExpressLRS Nano Receiver
• 1 x 70mm mini antenna
